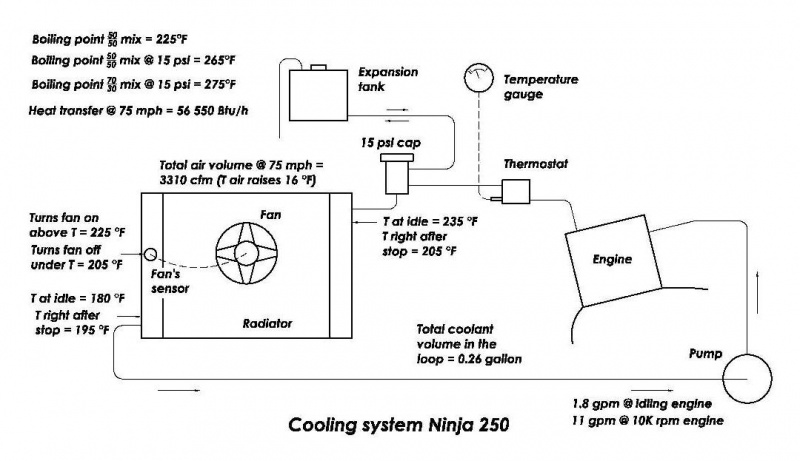

This schematic shows the components of the Ninja 250 cooling system and how they relate to each other. | This schematic shows the components of the Ninja 250 cooling system and how they relate to each other. | ||
[[image:841135.jpg| | [[image:841135.jpg|800px]] | ||
Things to note on this drawing, starting from the upper left: | |||
1. | |||
