Ignition circuit schematic
From Ninja250Wiki
Jump to navigationJump to search

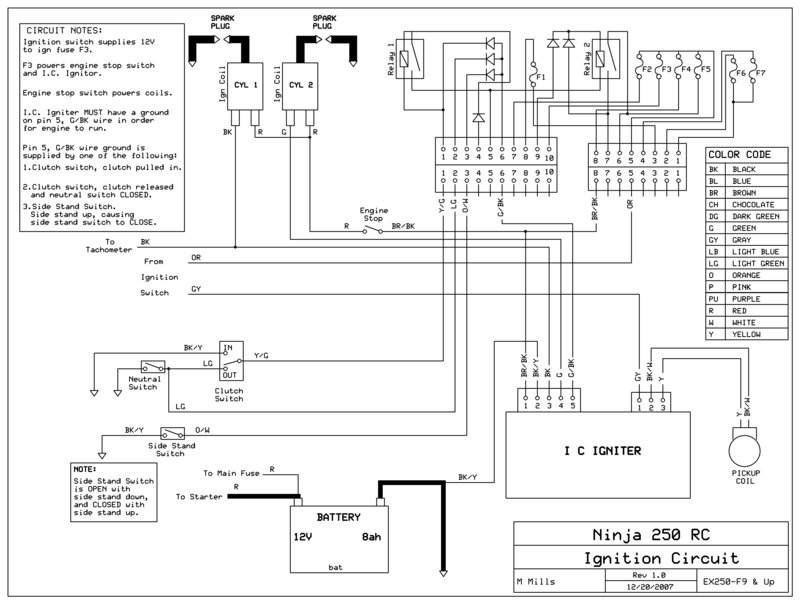

Below is a schematic for the ignition circuit. Note the color code for the wires (right margin) and the notes concerning the circuit (upper left).
